photron_fastcam_mini_ax50_high_speed_cameraPhotron FASTCAM Mini AX50
The Photron FASTCAM Mini AX50 high-speed cameras provide high frame rates, extraordinary light sensitivity and superior image quality in a compact, lightweight and rugged camera design. Providing 1,024 x 1,024 pixel resolution at up to 2,000 frames per second (fps). Contained within a 120mm x 120mm ...Read more



  • Description
  • Specifications

The Photron FASTCAM Mini AX50 high-speed cameras provide high frame rates, extraordinary light sensitivity and superior image quality in a compact, lightweight and rugged camera design. Providing 1,024 x 1,024 pixel resolution at up to 2,000 frames per second (fps).

Contained within a 120mm x 120mm x 94mm (4.7" X 4.7" X 3.7") camera body weighing just 1.6kg (3.5lbs), the FASTCAM Mini AX is uniquely suited for use in a wide range of scientific and industrial applications.

The FASTCAM Mini AX 50 high speed camera provides high light sensitivity, 12-bit ADC, outstanding image quality and color fidelity, and is available with memory options up to 32GB for extended recording times and triggering flexibility.

The FASTCAM Mini AX 50 high speed camera is available in two models that differ only in frame rate performance. The Mini AX100 is the faster camera, providing 4,000 fps at full resolution. The lower priced Mini AX50 allows 2,000fps at full resolution. Higher light sensitivity means that less additional lighting is required to capture a high-speed event. It also means that faster frame rates, shorter shutter speeds and greater depths of field are provided under equivalent lighting conditions.

Target applications include:

  • Offboard automotive safety testing
  • Biomechanics
  • Life sciences
  • Defence and aerospace research
  • Material sciences
  • Fluid dynamics / PIV

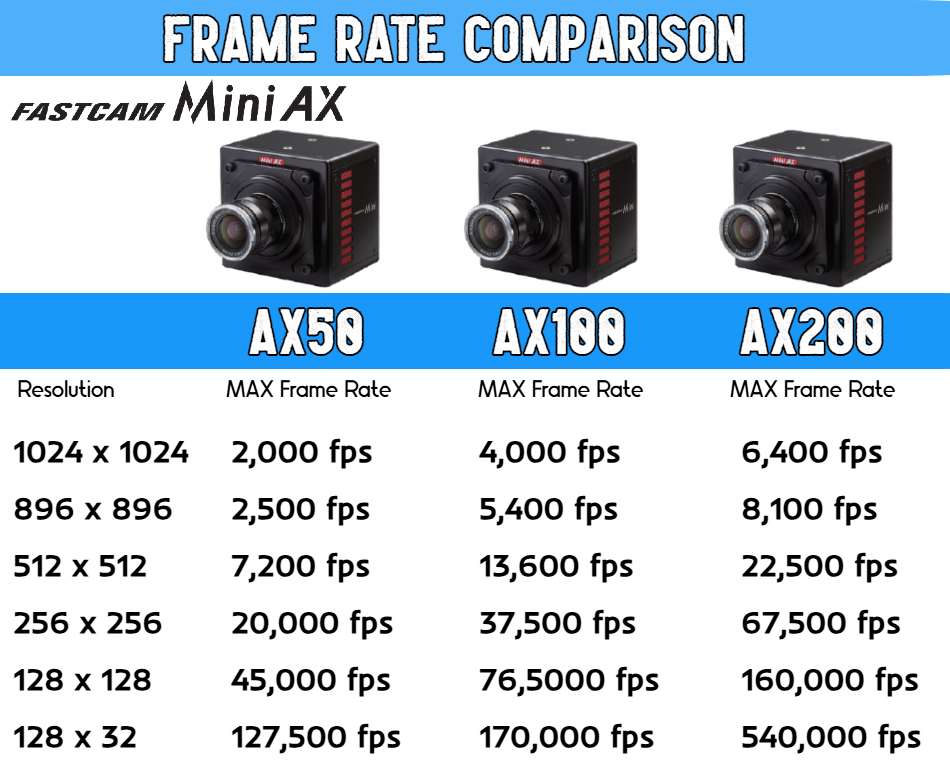

1024x1024 @ 2,000fps
  • 2,000 fps at 1,024 x 1,024 pixel resolution
  • 6,000 fps at 640 x 480 pixel resolution
  • 10,000 fps at 384 x 384 pixel resolution
  • 20,000 fps at 256 x 256 pixel resolution
  • 76,500 fps at 128 x 64 pixel resolution
  • Self-contained, compact and lightweight camera makes positioning your camera easy regardless of where you need it.
  • Available with three on board memory options (8GB, 16GB, 32GB)
  • Fast acting image trigger allows automated camera trigger operation
32GB
170,000fps
1.05us
Toggle Fan On/Off
Gigabit Ethernet
12-bit
Yes
32GB: 21,841 frames at full resolution
40,000
16,000
Global Electronic Shutter
20μm x 20μm
