The GSVitec MultiLED LX high speed camera lighting system produces 200,000 lumen of white light, making the GS Vitec LX one of the most powerful illumination systems of its kind. The MultiLED LX is a standalone lamp head for continuous or strobed operation comes in two versions (AC or DC). By connec ...Read more
  • Description
  • Specifications
  • Videos

The GSVitec MultiLED LX high speed camera lighting system produces 200,000 lumen of white light, making the GS Vitec LX one of the most powerful illumination systems of its kind. The MultiLED LX is a standalone lamp head for continuous or strobed operation comes in two versions (AC or DC). By connecting to the GX8 controller, you are able to access a numerous number of settings, such as light intensity, pulse width or delay. Control up to (8) eight LX lamp heads on a GX8 controller.

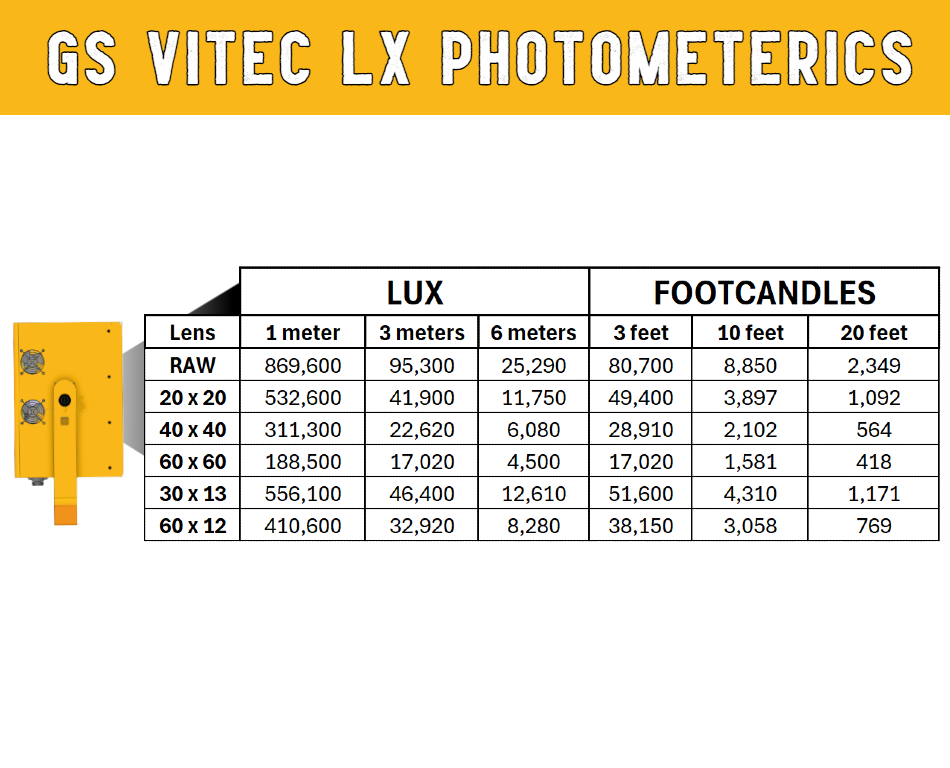

Weighing 11.5 Kg (25.4lbs) AC version, or 8.2Kg (18.1lbs) DC version, the MultiLED LX packs in 468 high power flicker-free LEDs. MultiLED line of lighting solutions is built to be the best LED lighting for high speed cameras. LX lamp head uses different interchangeable beam spreading lenses with the following opening angles: 35° x 35°, 45° x 45°, 60° x 60°, 30° x 18° and 60° x 18°. The fixture is designed with a yoke, pan, tilt locking system to easy installation and setup.

The MULTILED LX Boost option allows you to strobe at a reduced duty cycle in edge mode you can increase the output up to 500.000 lm scaling with reduced duty cycle.

GSVitec dedicated its German engineering to building lighting solution designed from a decade of experience with thousands of customer projects in mind. MultiLED products offer ultra strong lighting at an affordable price.

  • Complete Sets available (2-8 LX LED lights) with GX8 controller, power supply, and cables
  • Available in WHITE or BLUE (440-460nm)

MULTILED LX - KEY FEATURES

The MultiLed LX is a standalone lamp head for continuous operation.

With the optional MultiLed G8 controller connected, you can access a lot more functionality:

  • Preinstalled lens (horizontal x vertical): 18°x18°
  • Additional lenses (horizontal x vertical): 35°x 35° - 45°x 45° - 60°x 60° - 30°x 18° - 60°x 18°
  • WHITE or BLUE (440-460nm)
  • Continuous or pulsed operation
  • Yoke, pan, tilt (lock)

Advanced features when connected to MultiLed GX8:

New GS Vitec "Ultra high speed strobe" technology. Supply power built directly in GS Vitec LX unit

Control up to 8 MultiLED LX units from one GX8 controller

  • Down to 200 nanoseconds strobe length at full output power (white LED)
  • Down to 100 nanoseconds strobe length at full output power (color LED)
  • Pulse delay: 220 ns
  • Pulse rise time: 100 ns
  • Pulse fall time (white): 200 ns
  • Pulse fall time (color): 60 ns
  • Shortest usable pulswidth (white): 200 ns
  • Shortest usable pulswidth (color): 100 ns
  • Strobe on pulse duration or flank selectable
  • Adjustable intensity for each channel: 0% to 100%
  • Temperature and status display for each lamp head
  • All communications and trigger come from the GX8 through 1 cable

MULTILED LX

Luminous Flux

white (5,700K), 200,000 Lumen

Power

2,000 W

Supply Voltage

43 Vdc or wide range AC

Bundled PS

AC version: built in 2.000 W, 43 V DC version: 19” rack or other (ask)

Connector

1x molex 8 pin for data
C13 for AC version
Or speakon connector for DC 42 V

Heat Dissipation

Active, heatsink and fan

Einvironmental temp. (operation)

- 23°C - +50°C
(100% continuous +35°C)

temp. (Storage)

-25°C - 80°C

Overtemperature Protection

Sensor onboard

IP class

IP 20

Mounting Options

Yoke, pan, tilt (lock)

Standard Lenses

18° x 18° (horizontal x vertical)

Optional Lenses (MX Plus)

35°x 35°, 45° x 45°, 60° x 60°, 30° x

18°, 60° x 18° (horizontal x vertical)

Dimensions

See spec sheet

Weight

AC version: 11,5 kg (  25.4lbs)

DC version: 8,2 kg (18.1 lbs)

Setup

Standalone or G8 controller

Delay / rise and fall time

200ns / 100ns / 350ns (white)

100ns / 100ns / 60ns (color)

LED

468

Housing

Aluminium

Light modes

Continuous, pulse duriation, edge mode with predifined strobe time

Light Intensity

Adjustable, 1%-100%/Off


200,000 Lumens
2000 Watts
