Photron | FASTCAM Analysis 2

PFA2 software undoubtedly stands as one of the most powerful tools available for professionals needing precise motion analysis capabilities. Photron Fastcam Analysis 2 offers exceptional performance when capturing and analyzing high-speed movements that would otherwise be impossible to see with the naked eye. This advanced motion analysis software particularly excels in displacement measuring and velocity measurements, making it invaluable across research, engineering, and industrial applications.

Photron’s experience with PFA2 has shown its robust image processing tools are specifically designed to simplify complex analysis tasks. The software's sophisticated object tracking capabilities allow us to follow moving particles with remarkable accuracy, whether tracking particles in fluid dynamics experiments or analyzing mechanical components under stress. This data analysis tool streamlines the entire workflow from video capture to data interpretation, saving significant time while delivering precise results for your high-speed motion analysis needs.

Tool Based Workflow in Photron Fastcam Analysis 2

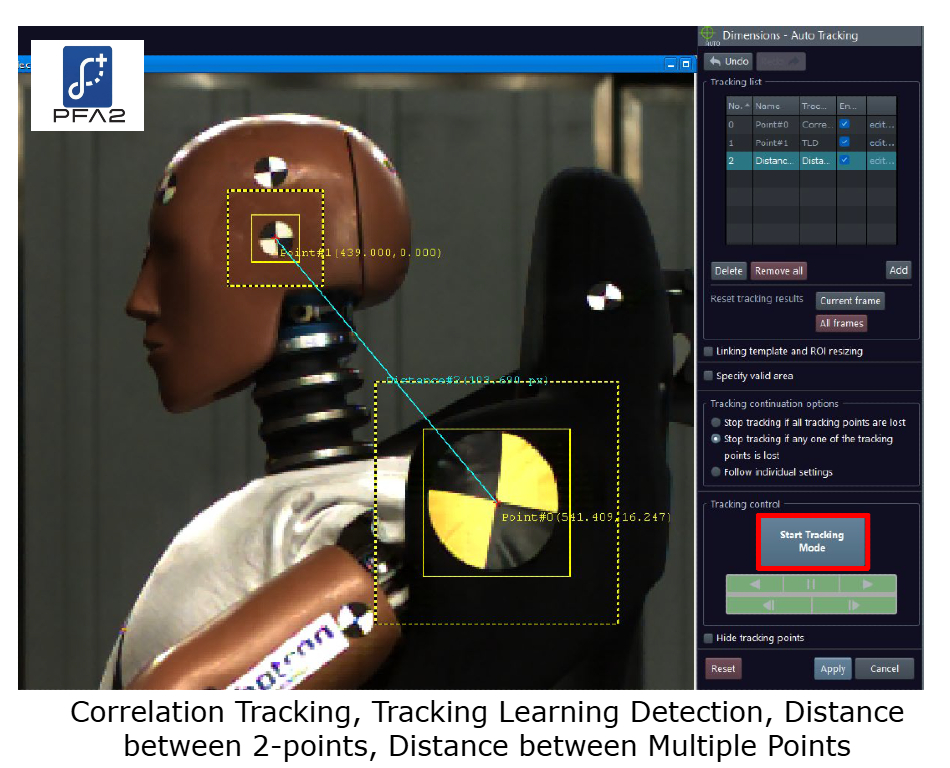

The workflow in Photron Fastcam Analysis 2 revolves around a comprehensive toolkit designed for precise motion measurement. After loading captured footage, the software presents a logical sequence of analysis options. The Point Tracking Tool, which allows for marking specific points on moving objects across multiple frames, consequently generating detailed trajectory data.

For more complex scenarios, the Contour Tracking Feature proves invaluable, automatically detecting object boundaries and following their movement throughout the sequence. The vector analysis tools calculate velocity and acceleration data from tracked points, presenting results as color-coded vector fields for immediate visual interpretation.

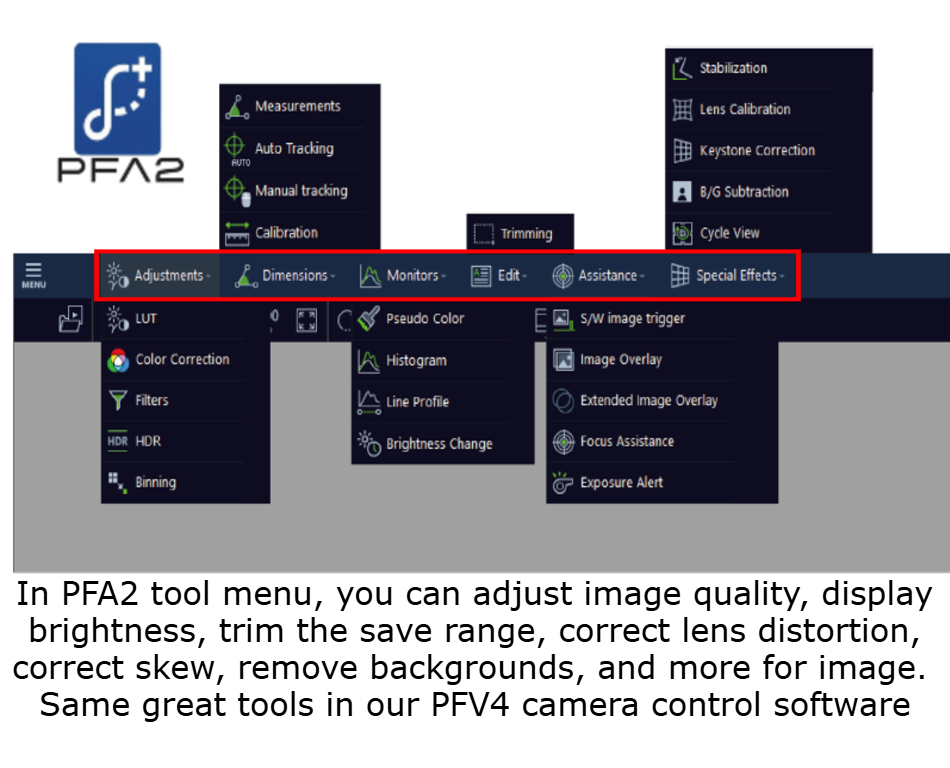

PFA2's masking capabilities enable us to isolate regions of interest, eliminating background noise that might otherwise interfere with accurate measurements. The software also includes specialized tools for angle measurement, distance calculation, and area analysis that is all accessible through an intuitive interface.

What makes this workflow especially efficient is how each tool feeds into the next. Results from tracking automatically populate measurement parameters, streamlining the entire analysis process. The interface organizes these tools sequentially, guiding users through a methodical approach to motion analysis while maintaining flexibility for customized workflows according to specific research requirements.

Exporting and Interpreting Motion Data

After completing analysis in PFA2 software, exporting the processed data becomes essential for further interpretation. The software offers multiple export formats including CSV, Excel, and MATLAB compatible files, enabling seamless integration with statistical analysis tools. You can export raw trajectory data, velocity profiles, or acceleration graphs with just a few clicks through the dedicated export panel.

For effective data interpretation, first examine the displacement graphs which provide fundamental insights into motion patterns. Afterwards, velocity and acceleration profiles reveal critical details about movement dynamic particularly useful when analyzing mechanical systems or biological motion.

PFA2's export functionality preserves all measurement units and calibration information, hence maintaining data integrity throughout the analytical pipeline. When interpreting results, remember that frame rate directly impacts data resolution with higher frame rates that yield smoother curves and capture rapid transitions that might otherwise be missed.

The color-coded visualization options in PFA2 simplify complex motion interpretation by representing velocity variations through intuitive heat maps. Additionally, the software calculates statistical values automatically, including maximum/minimum values and averages across selected time intervals.

For researchers requiring reproducibility, the software includes metadata with each export file, documenting all analysis parameters used during processing—an invaluable feature for scientific documentation and validation of experimental results.

PFA2 software thus proves itself an indispensable asset for professionals requiring precise motion analysis. The combination of sophisticated tracking capabilities, comprehensive measurement tools, and streamlined workflow makes this system particularly valuable across numerous scientific and industrial applications. Researchers and engineers will find that PFA2 effectively bridges the gap between raw high-speed footage and meaningful, actionable motion data.

You can try out PFA2 on your own computer!
Try out all of the functions for a limited time of 30 days.

Please download and try it out.
